10KW DC/DC Converter 96V to 12V
Designed for 96V electric vehicle platforms, this 10kW DC fast charging converter enables low-voltage EVs to connect with high-voltage DC charging stations. Supporting 250-350V DC input and 70-150V DC output, it helps shorten charging time through efficient power conversion and vehicle communication integration with VCU/BMS.

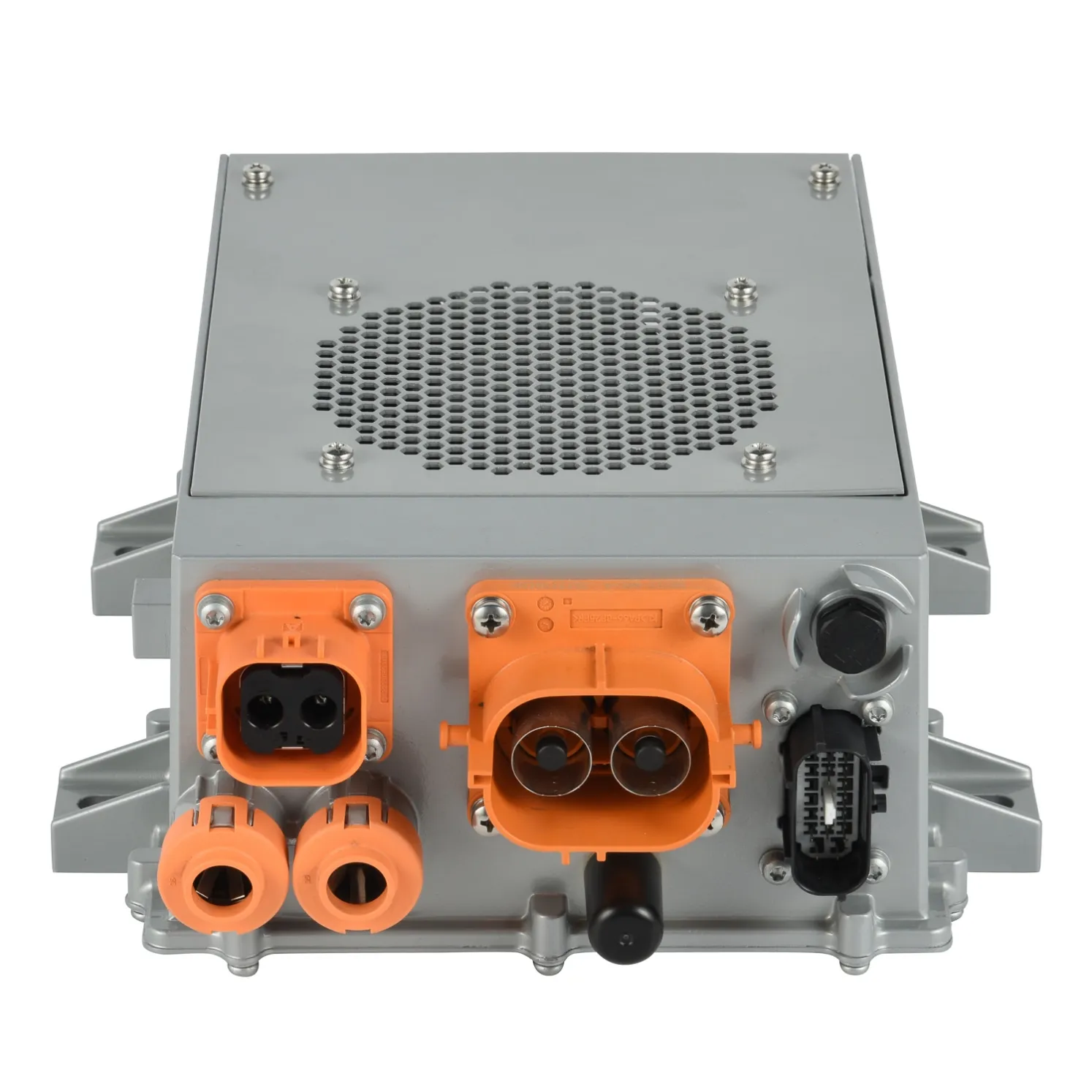

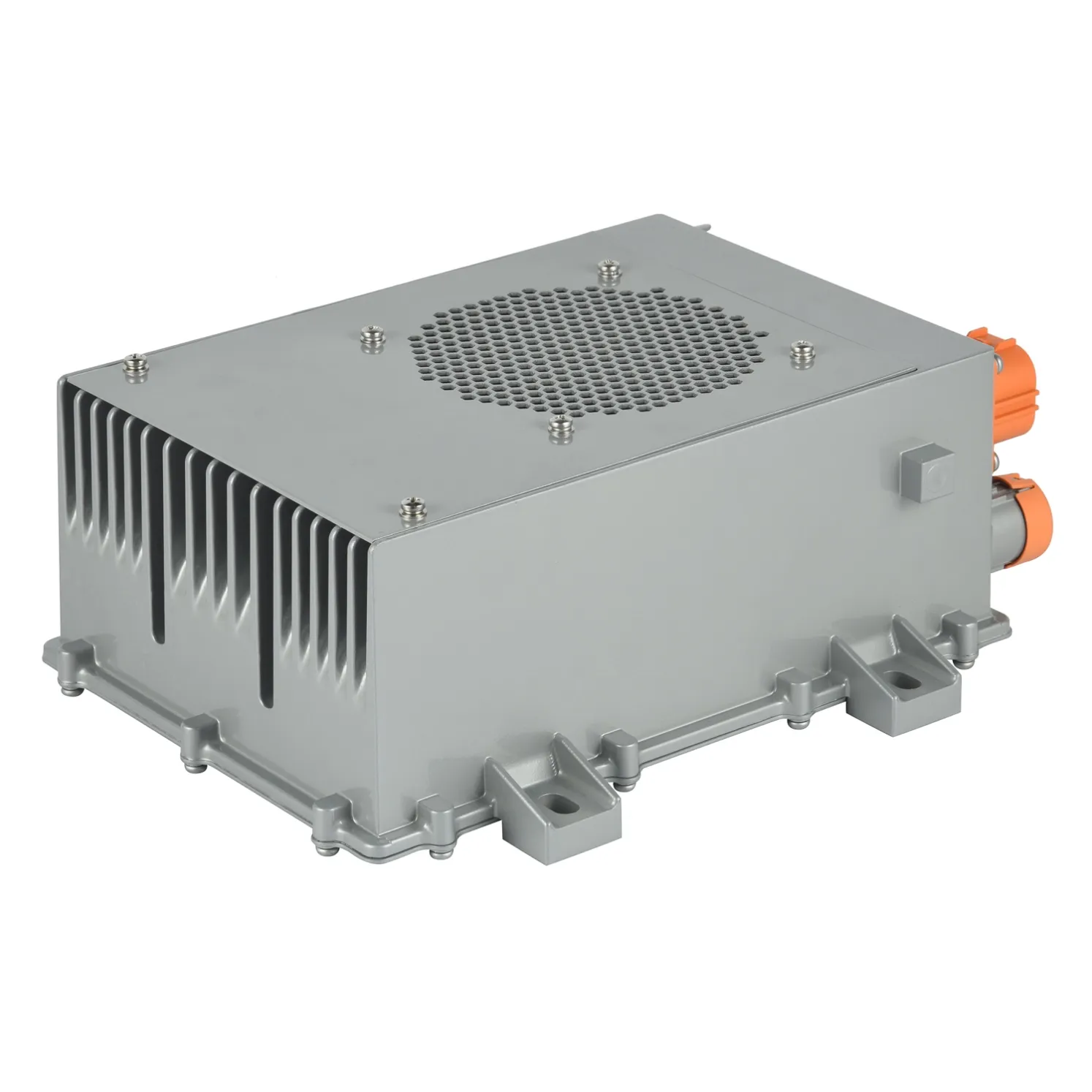

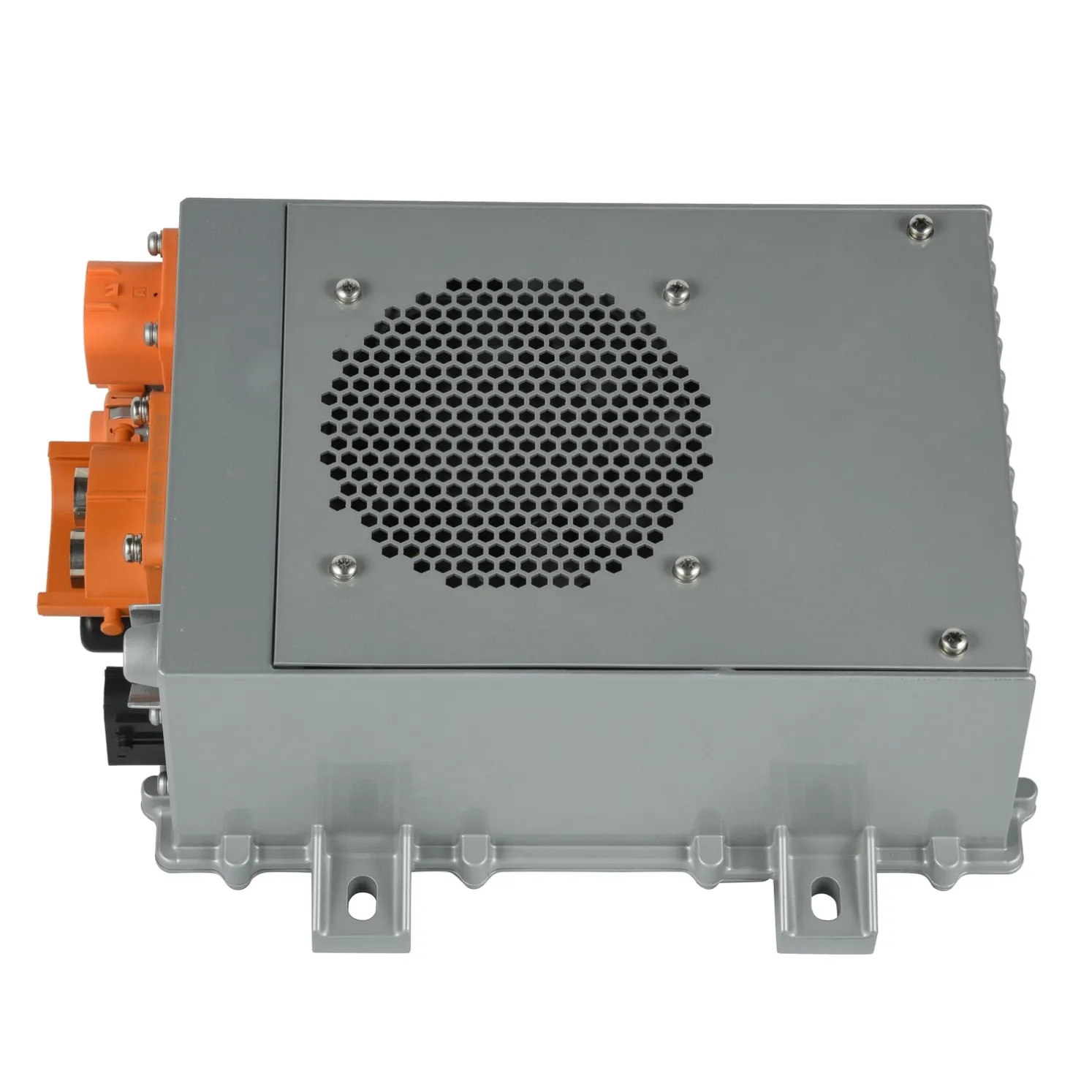

96V 10kW DC Fast Charging Converter for EVs
Product Description
Designed for 96V electric vehicle platforms, this 10kW DC fast charging converter enables low-voltage EVs to connect with high-voltage DC charging stations. Supporting 250-350V DC input and 70-150V DC output, it helps shorten charging time through efficient power conversion and vehicle communication integration with VCU/BMS.
Key Features
✓ 96V battery system compatible
✓ 10kW high-power DC charging capability
✓ Enables low-voltage EVs to use DC fast chargers
✓ Supports VCU/BMS communication
✓ High efficiency ≥95%
✓ IP67 protection design
✓ Forced air cooling system
✓ CAN communication support
Applications
Designed for:
- Electric commercial vehicles
- Electric utility vehicles
- Electric trucks
- Electric agricultural vehicles
- Low-voltage EV platforms
DC Fast Charging Solution for Low-voltage EVs
Most DC fast charging stations provide high-voltage output (typically 200-750V DC), which cannot directly charge low-voltage EV platforms.
This DC fast charging converter bridges the voltage gap by converting high-voltage DC input into a suitable charging voltage for 96V battery systems, enabling faster charging for low-voltage electric vehicles.
Technical Specifications
Parameter | Specification |
|---|---|
Model | PD-BH-AA-300J |
Battery Voltage Platform | 96V DC |
Input Voltage | 250-350V DC |
Input Current | 0-40A |
Output Voltage | 70-150V DC |
Output Current | 0-100A |
Rated Power | 10kW |
Efficiency | ≥95% |
Cooling Method | Forced Air Cooling |
Protection Class | IP67 |
Communication & Integration
The converter supports communication with vehicle control systems including VCU/BMS, enabling intelligent charging management and system integration.
