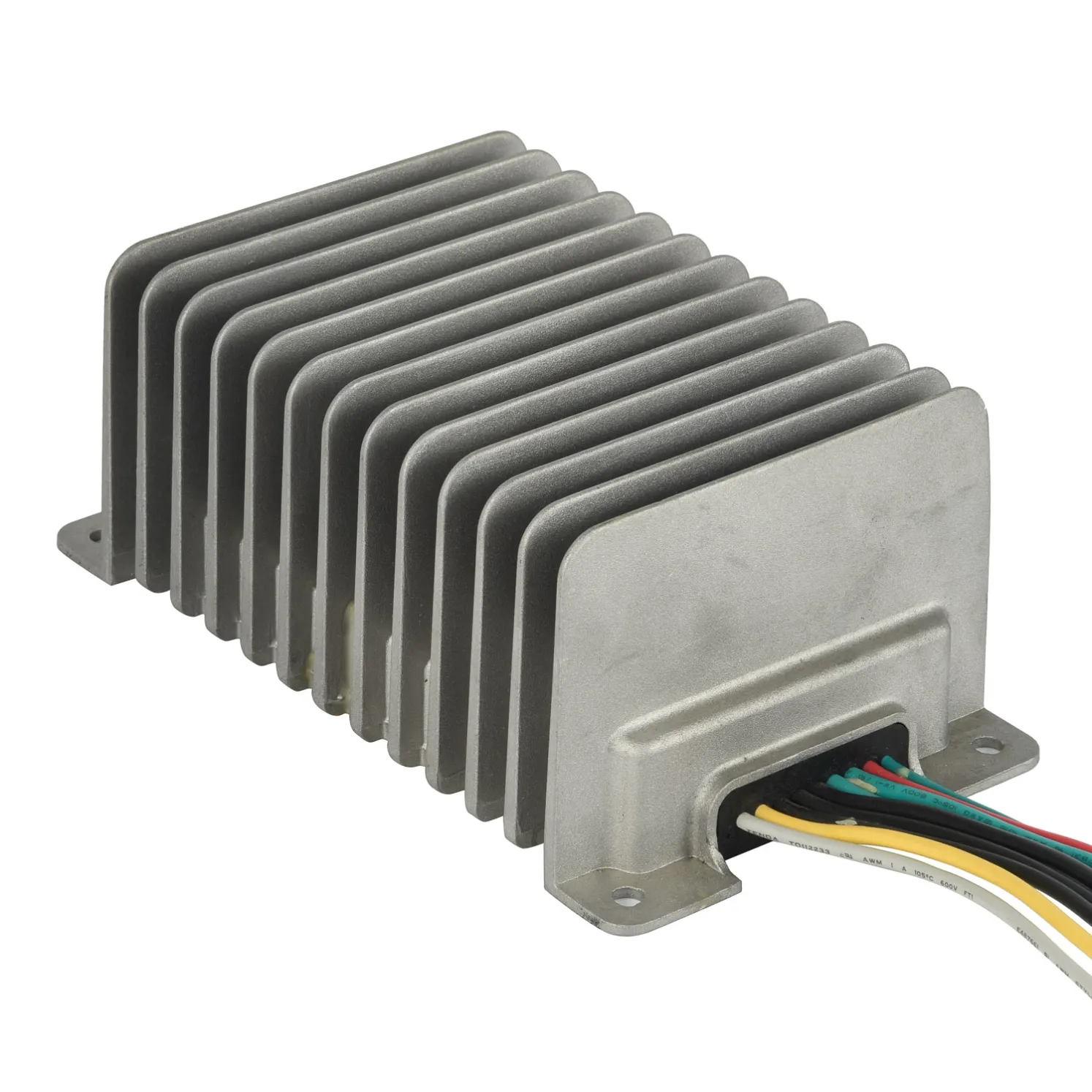

500W DC-DC Converter | Echelon
Designed for 96V battery systems, this compact DC/DC converter converts 64-133V DC input into stable 9-16V DC output. With 500W rated power, high efficiency and multiple protection functions, it provides a reliable low-voltage power solution for electric vehicles and auxiliary systems.
96V 500W DC/DC Converter for Electric Vehicles
Compact DC/DC Power Solution for EV Low-voltage Systems
Echelon Energy’s 500W DC/DC Converter is designed for new energy vehicles requiring stable low-voltage power conversion.
Contact Echelon Energy Team to receive the full specifications.
Supporting 96V battery systems, this converter converts high-voltage DC power into a stable 12V output for vehicle auxiliary systems, providing reliable power supply for lights, controllers, instruments and other low-voltage components.
With high efficiency, CAN Bus communication support and multiple protection functions, it is suitable for various electric vehicle platforms.
Key Features
✓ 96V DC battery system compatible
✓ 500W rated output power
✓ 9-16V DC stable output
✓ High efficiency ≥93%
✓ Compact and lightweight design
✓ Multiple protection functions
✓ Reliable operation in EV environments
Applications
Designed for:
- Electric commercial vehicles
- Electric utility vehicles
- Electric trucks
- Electric agricultural vehicles
- Special-purpose EVs
Stable Power Conversion
The DC/DC converter provides a stable 12V power supply from the vehicle battery system, supporting various low-voltage electrical components.
Suitable for powering:
- Vehicle control systems
- Lighting systems
- Dashboard and instruments
- Auxiliary electrical devices
Protection & Reliability
Built-in protection functions include:
✓ Input over-voltage protection
✓ Input under-voltage protection
✓ Output over-voltage protection
✓ Output over-current protection
✓ Short circuit protection
✓ Over-temperature protection
Technical Specifications
Parameter | Specification |
|---|---|
Model | PD-BA-0F-96Y |
Battery Voltage Platform | 96V DC |
Input Voltage | 64-133V DC |
Output Voltage | 9-16V DC |
Rated Output Current | 36A |
Peak Output Current | 46A |
Rated Power | 500W |
Peak Power | 600W (6 minutes) |
Efficiency | ≥93% |
Cooling Method | Natural Cooling |
Weight | 1.35kg |
Designed for EV Integration
With a compact structure and reliable power conversion performance, this 500W DC/DC Converter helps EV manufacturers simplify low-voltage power system design and improve vehicle reliability.
