Integrated OBC+DC-DC 2-in-1

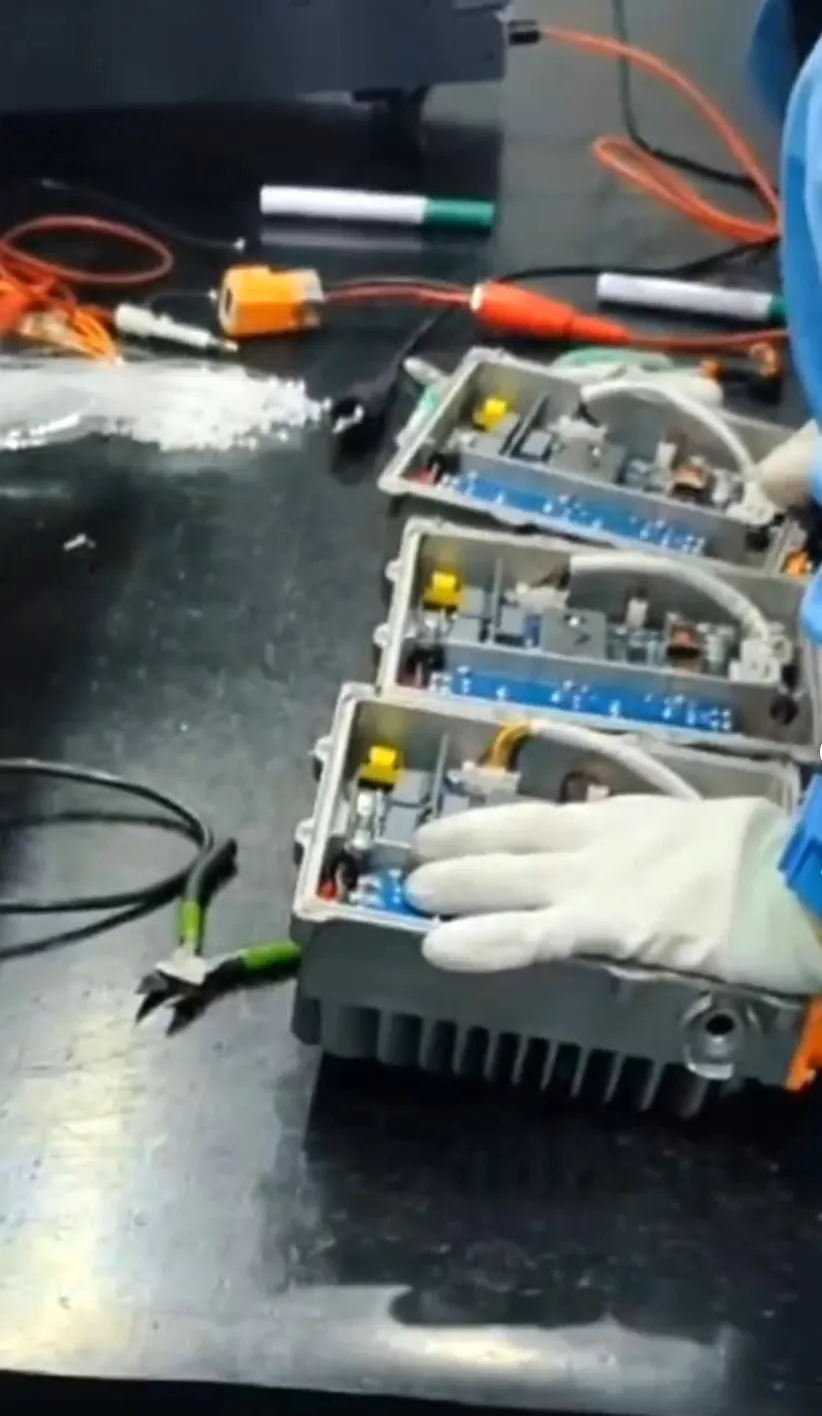

2KW OBC+1KW DC-DC Converter 2-in-1 (72v/96v)
Designed for 72V and 96V electric vehicle platforms, this 2-in-1 solution integrates a 2.0kW onboard charger and 1.0kW DC-DC converter into one compact unit. It helps EV manufacturers reduce wiring complexity, save installation space and improve overall power system integration. With CAN-bus communication and reliable protection functions, it is suitable for electric cargo vehicles, utility vehicles, agricultural EVs, low-speed EVs and other commercial electric vehicle applications.
2kW OBC + 1kW DC-DC Converter 2-in-1
Product Description
The 2.0kW OBC + 1.0kW DC-DC Converter is an integrated power solution designed for commercial electric vehicle platforms.
Contact Echelon Energy Team to receive the full specifications.
Available in 72V and 96V battery platforms, this 2-in-1 solution combines onboard charging and DC-DC conversion functions into one compact unit, helping EV manufacturers reduce wiring complexity, save installation space and improve system integration.
With CAN-bus communication and multiple protection functions, it is suitable for electric cargo vehicles, utility vehicles, agricultural EVs, low-speed EVs and other commercial EV applications.
Key Features
Integrated OBC + DC-DC Design
Combines onboard charger and DC-DC converter functions in one compact enclosure, simplifying vehicle electrical architecture.
Multiple Battery Voltage Platforms
Available versions:
- 72V Battery Platform
- 96V Battery Platform
Reliable Protection Functions
Includes:
- Over Voltage Protection
- Under Voltage Protection
- Over Current Protection
- Short Circuit Protection
- Over Temperature Protection
CAN-bus Communication
Supports CAN communication for EV system integration.
Technical Specifications
OBC Specifications
Parameter | 72V Version | 96V Version |
|---|---|---|
Model | OD-CA-2A1A-72Y | OD-CA-2A1A-96Y |
Battery Platform | 72Vdc | 96Vdc |
Input Voltage | 90-264Vac | 90-264Vac |
Output Voltage | 50-100Vdc | 64-128Vdc |
Output Current | 0-24A | 0-20A |
Output Power | 2000W@220Vac / 1000W@110Vac | 2000W@220Vac / 1000W@110Vac |
Efficiency | ≥94% | ≥94% |
Cooling | Air Cooling | Air Cooling |
Weight | ≤4.5kg | ≤4.5kg |
DC-DC Converter Specifications
Parameter | 72V Version | 96V Version |
|---|---|---|
Input Voltage | 50-100Vdc | 64-128Vdc |
Output Voltage | 9-16Vdc | 9-16Vdc |
Rated Output Current | 72A | 72A |
Peak Current | 86A | 86A |
Rated Power | 1000W | 1000W |
Peak Power | 1200W (6 min) | 1200W (6 min) |
Efficiency | ≥94% | ≥94% |
Typical Applications
- Electric Cargo Vehicles
- Utility Vehicles
- Agricultural EVs
- Low-speed EVs
- Commercial Electric Vehicles
