Integrated OBC+DC-DC+PDU 3-in-1
3.3kW OBC+1kW DC/DC+PDU 3-in-1 (96v/320v)
For new energy vehicles, CC/CV output. Built-in reverse polarity protection for high voltage input as well as OVP, UVP, short circuit and OTP protection.

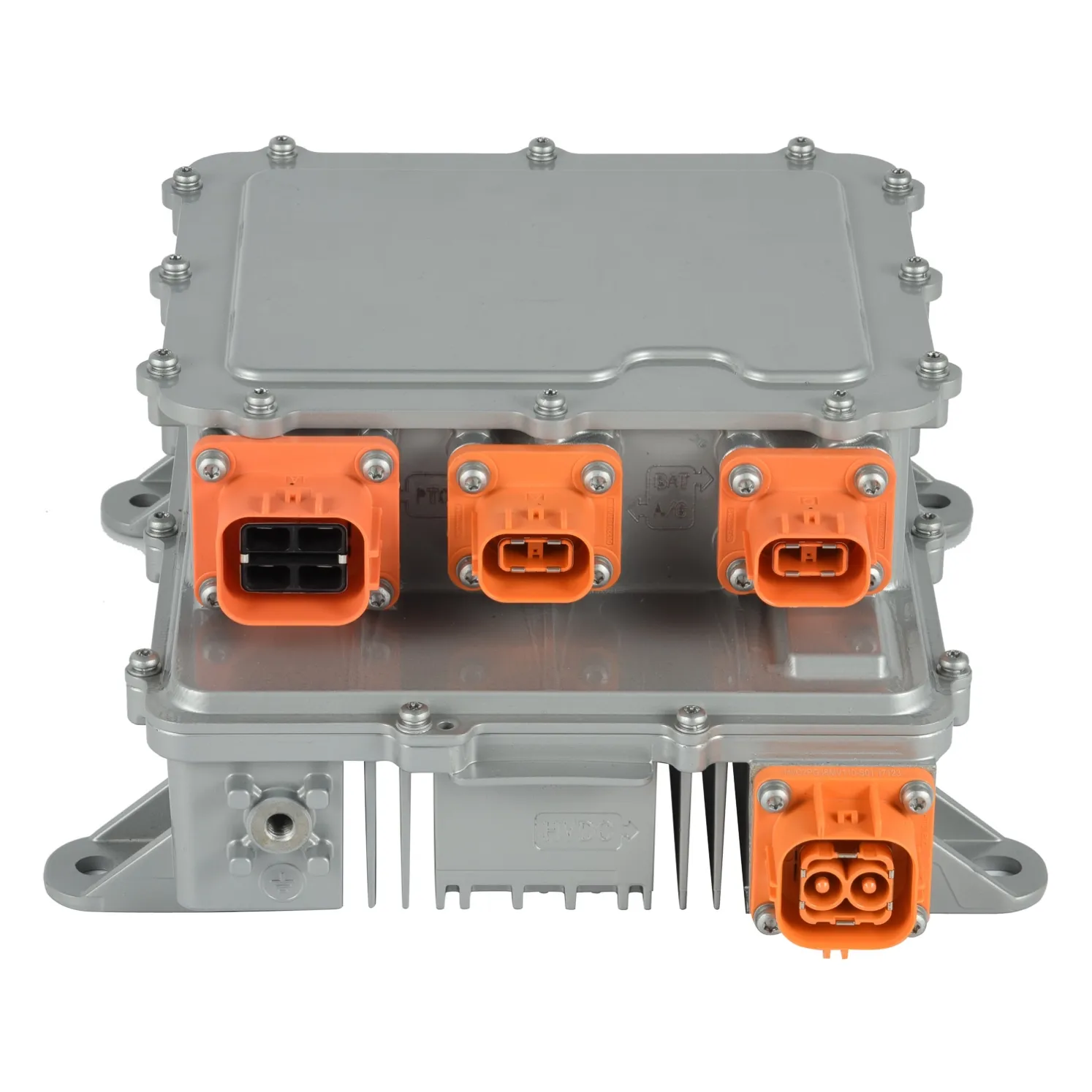

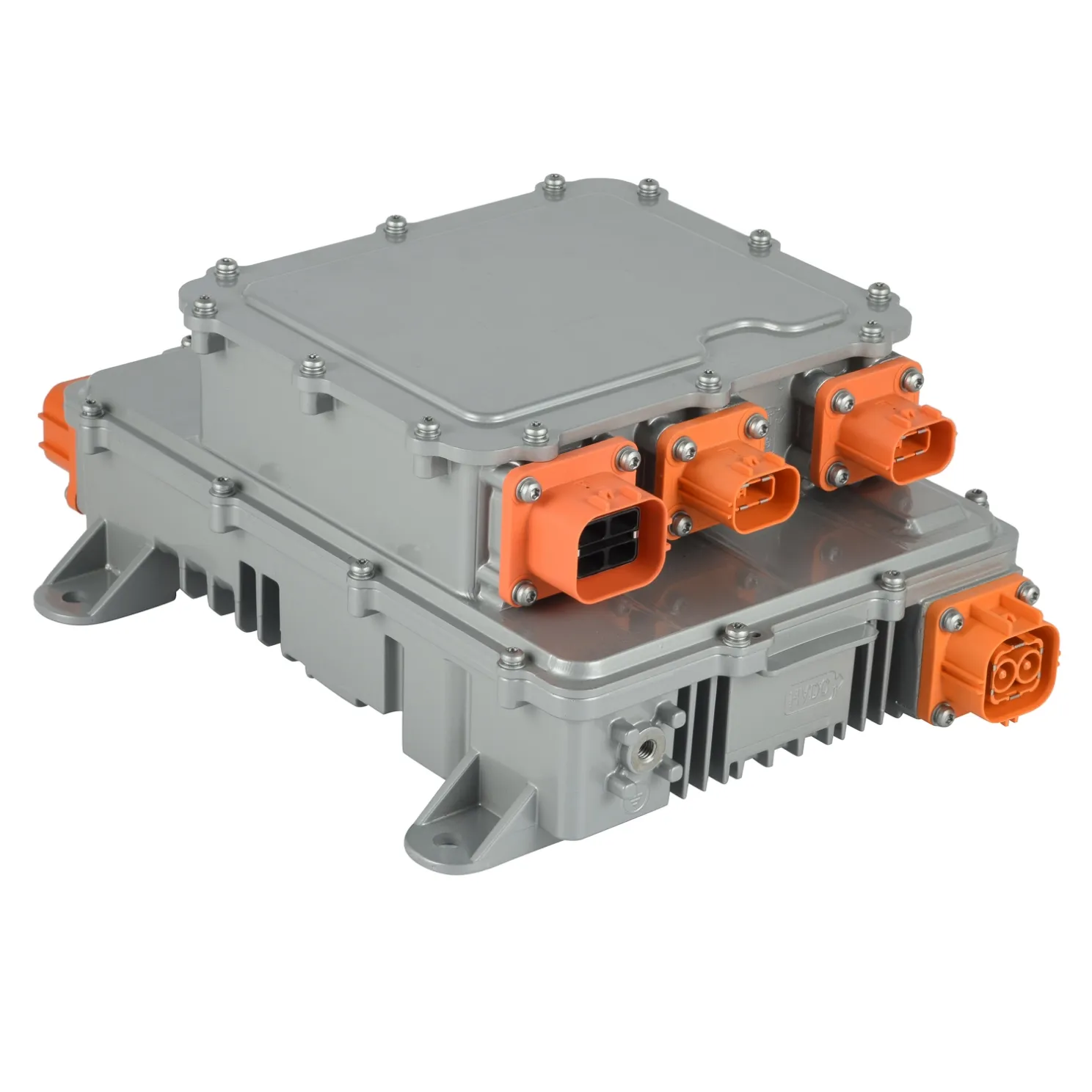

3.3kW OBC + 1kW DC-DC + PDU 3-in-1 Integrated Power Solution
Product Description
Designed for 96V and 320V electric vehicle platforms, this 3-in-1 integrated power solution combines a 3.3kW onboard charger, 1kW DC-DC converter and high-voltage power distribution unit (PDU) into one compact system.
Contact Echelon Energy Team to receive the full specifications.
By integrating charging, DC power conversion and high-voltage distribution functions, it helps EV manufacturers simplify vehicle architecture, reduce wiring complexity and optimize installation space.
With CAN-bus communication, comprehensive protection functions and high-voltage power management capability, it is suitable for commercial electric vehicles, utility vehicles, agricultural EVs and other specialized EV applications.
Key Features
3-in-1 Integrated Design
Combines:
- On-Board Charger (OBC)
- DC-DC Converter
- High Voltage PDU
into one integrated power unit.
Dual Voltage Platform Options
Available versions:
- 96V Battery Platform
- 320V Battery Platform
Integrated High Voltage Distribution
Supports high-voltage power distribution for EV auxiliary systems, including:
- PTC heating
- Air conditioning
- Vehicle power systems
CAN-bus Communication
Supports intelligent communication with vehicle control systems.
Reliable Protection Functions
Includes:
- Over Voltage Protection
- Under Voltage Protection
- Over Current Protection
- Short Circuit Protection
- Over Temperature Protection
Technical Specifications
OBC
Parameter | 96V Version | 320V Version |
|---|---|---|
Model | ODP-CE-3D1A-96Y | ODP-CE-3D1A-320Y |
Battery Platform | 96Vdc | 320Vdc |
Input Voltage | 90-264Vac | 90-264Vac |
Output Voltage | 60-128Vdc | 195-450Vdc |
Output Current | 0-34A | 0-12A |
Output Power | 3300W@220Vac / 1650W@110Vac | 3300W@220Vac / 1650W@110Vac |
Efficiency | ≥94% | ≥94% |
DC-DC Converter
Parameter | Specification |
|---|---|
Rated Output Voltage | 9-16Vdc |
Rated Power | 1000W |
Peak Power | 1200W (6 min) |
Rated Current | 72A |
Peak Current | 86A |
Efficiency | ≥94% |
Typical Applications
- Electric Commercial Vehicles
- Electric Cargo Vehicles
- Utility Vehicles
- Agricultural EVs
- Special Purpose EVs
